Included with the Adjustable Drip, Adjustable Spray and Under Tree Sprinkler Irrigation Kit, the Pressure Regulator is essential for the function of your irrigation lines.
Included with the Adjustable Drip, Adjustable Spray and Under Tree Sprinkler Irrigation Kit, the Pressure Regulator is essential for the function of your irrigation lines.
Due to the smaller nature of the 4mm Micro Tubing, these lines are susceptible to bursting or splitting if placed under too much pressure. The Pressure Regulator solves this issue by controlling and limiting the amount of pressure running through the irrigation system.

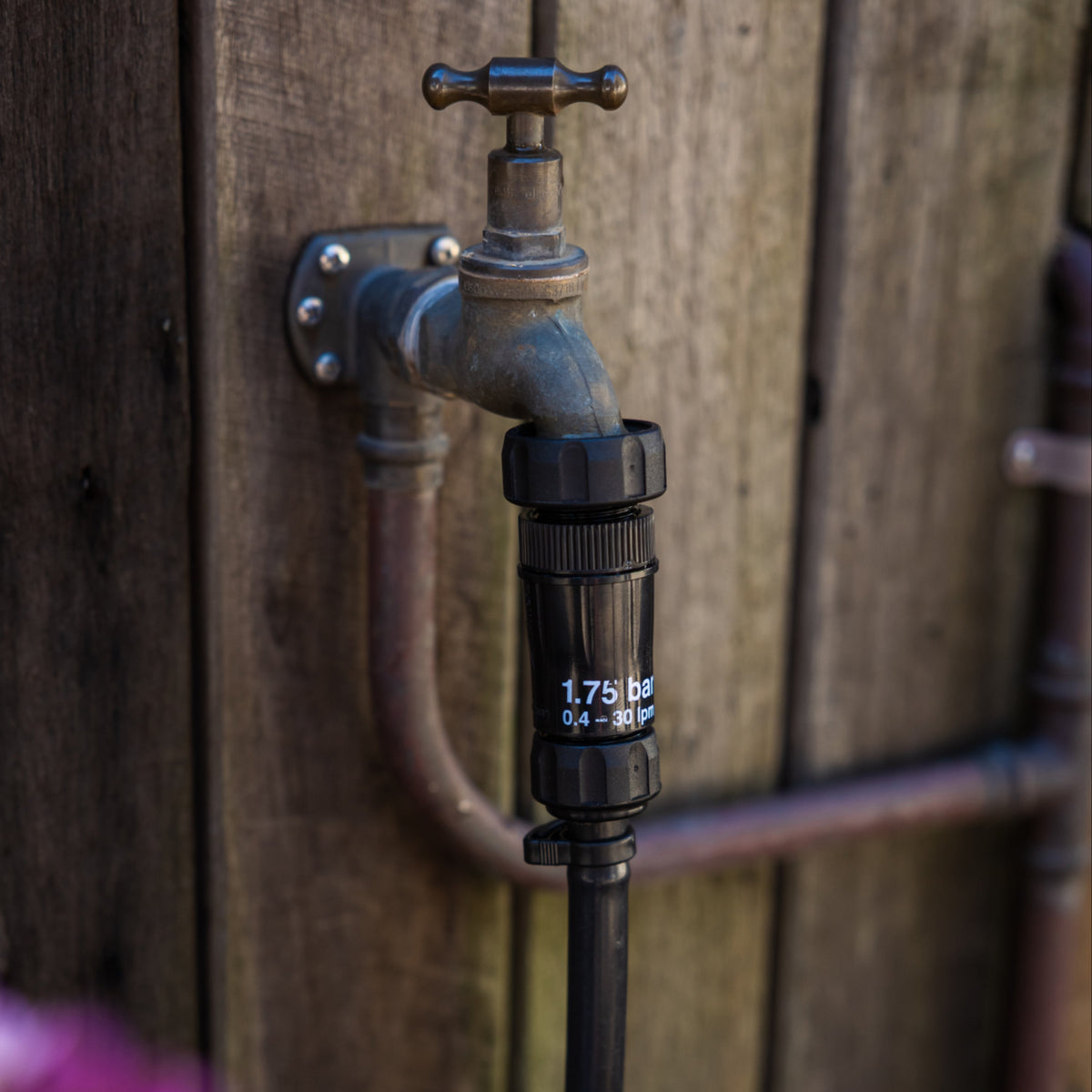

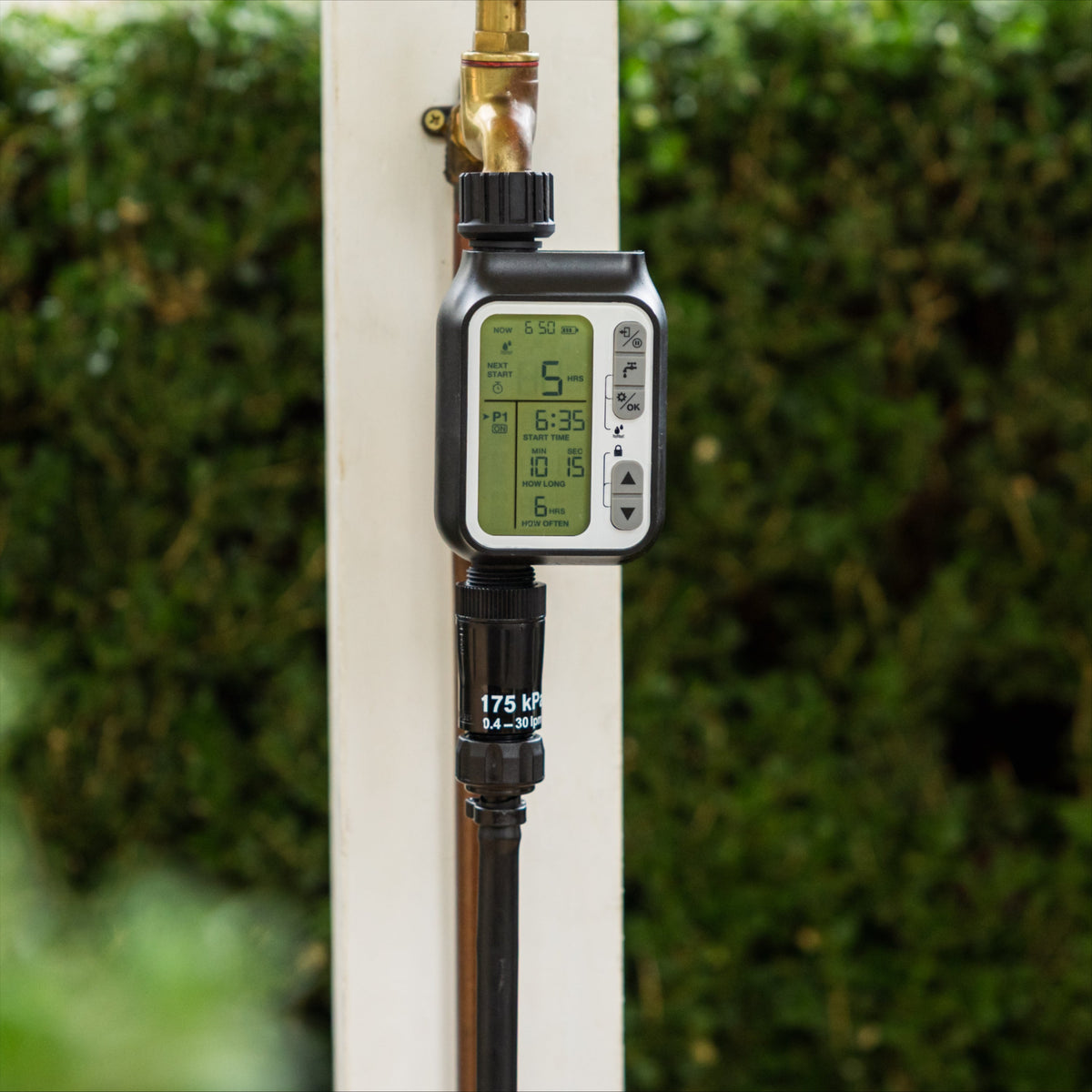

The Pressure Regulator should be installed directly at the water source and downstream from all shut-off valves. As such, if you are using a timer, the Pressure Regulator will need to be installed below the timer.

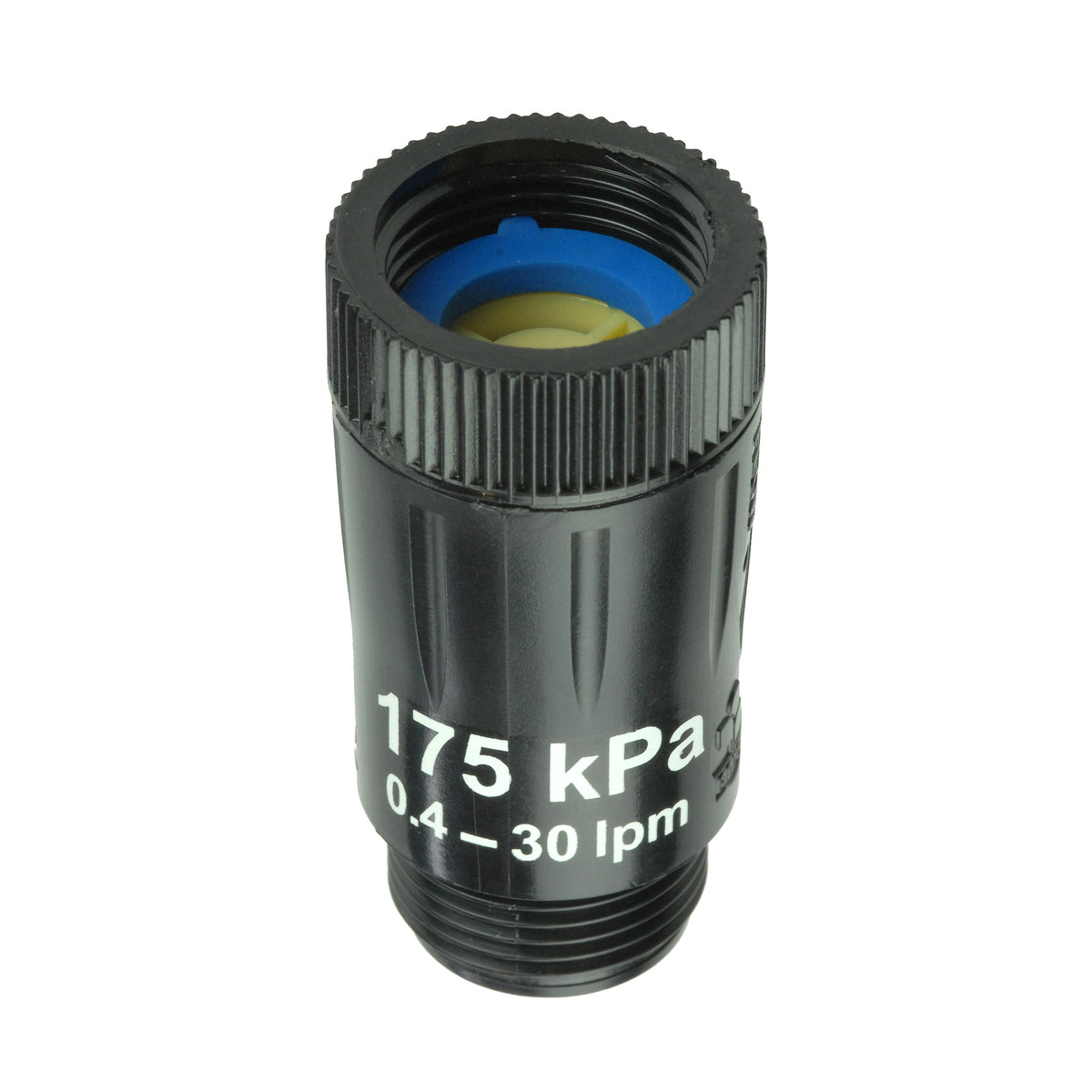

The Pressure Regulator will limit the water pressure to 175kPa (25psi) with an operating flow from 0.4 - 30 liters per minute. If the tap or water source exceeds this flow rate in either direction the effectiveness of the regulator may change.
Please note a 13mm Nut & Tail and 13mm Ratchet Clamp will be necessary to attach irrigation tubing to the Pressure Regulator. A 1" tap adapter may also be necessary if you have a larger thread tap.
Check hose diameter, thread size and connector system before fitting.
Connect and test at a low flow first; inspect for leaks and adjust the watering pattern or schedule.
Turn off the tap after use where required. Relieve pressure, clean filters and store according to the product instructions.
Frequently asked questions
Which product does this listing cover?
This listing is for Irrigation Kit | Pressure Regulator | 175kPa. Compare the specifications and photographs with the product you need.
What is the listed material?
Body: Acetal, polyproplene Filter: HDPE (High-Density Polyethylene). Check any option-specific values before ordering.
Will this fit my existing watering setup?
Match the listed hose diameter, thread and connector system. Different connector systems are not automatically interchangeable; an appropriate adapter may be required.
Are all items shown in the photographs included?
Photographs may show the product in use with other items. Use the stated kit contents and selected option to determine what is supplied; ask us if any accessory is unclear.
